Overview - Lane Change Assistance

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Audi A4

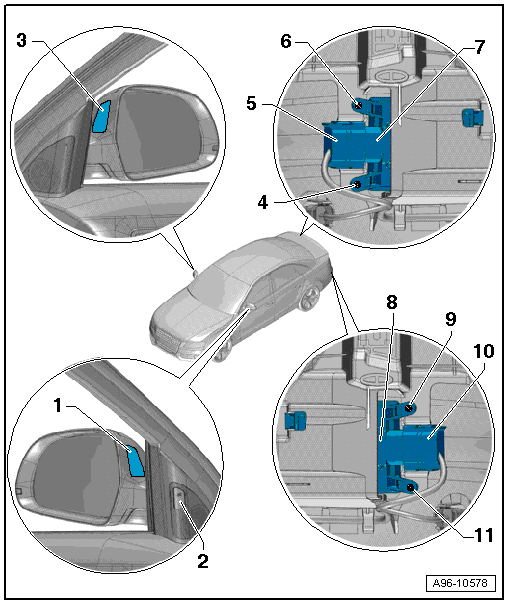

Fig 1: Overview Of Lane Change Assistance Components (Audi A4)
GWWA96-10578Courtesy of AUDI OF AMERICA, LLC
  1. Lane Change Assistance Warning Lamp In Driver Exterior Rearview Mirror -K233-
  2. Lane Change Assistance Button -E530-
  3. Lane Change Assistance Warning Lamp In Front Passenger Exterior Rearview Mirror -K234-
  4. Screw
    • 3.5 Nm
  5. Connector
  6. Screw
    • 3.5 Nm
  7. Lane Change Assistance Control Module -J769-
  8. Lane Change Assistance Control Module 2 -J770-
  9. Screw
    • 3.5 Nm
  10. Connector
  11. Screw
    • 3.5 Nm

Audi RS 4 - Not for North America

Fig 2: Overview Of Lane Change Assistance (Audi RS 4)
GWWA96-11110Courtesy of AUDI OF AMERICA, LLC
  1. Lane Change Assistance Button -E530-
  2. Lane Change Assistance Warning Lamp In Driver Exterior Rearview Mirror -K233-
  3. Lane Change Assistance Warning Lamp In Front Passenger Exterior Rearview Mirror -K234-
  4. Connector
  5. Screw
    • 3.5 Nm
    • Quantity: 3
  6. Lane Change Assistance Control Module -J769-
  7. Lane Change Assistance Control Module 2 -J770-
  8. Screw
    • 3.5 Nm
    • Quantity: 3
  9. Connector
