Overview - Rear Door Lamps

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

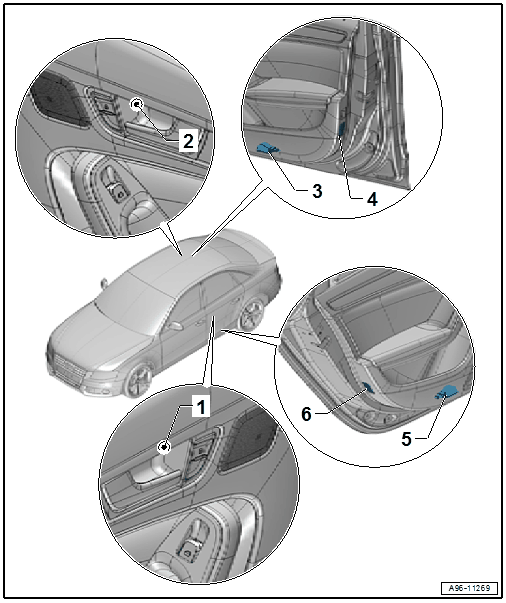

Fig 1: Overview Of Rear Door Lamps

Courtesy of AUDI OF AMERICA, LLC

Left Rear Door Opener Illumination Bulb -L110-
- Removing and installing. Refer to LEFT/RIGHT REAR DOOR OPENER ILLUMINATION BULB -L110- / -L111-, REMOVING AND INSTALLING .
Right Rear Door Opener Illumination Bulb -L111-
- Removing and installing. Refer to LEFT/RIGHT REAR DOOR OPENER ILLUMINATION BULB -L110- / -L111-, REMOVING AND INSTALLING .
Right Rear Entry Lamp -W34-
- 12 V, 3 W
- Removing and installing. Refer to LEFT/RIGHT REAR ENTRY LAMP -W33- / -W34-, REMOVING AND INSTALLING .
Right Rear Door Warning Lamp -W38-
- 12 V, 3 W
- Removing and installing. Refer to LEFT/RIGHT REAR DOOR WARNING LAMP -W37- / -W38-, REMOVING AND INSTALLING .
Left Rear Entry Lamp -W33-
- 12 V, 3 W
- Removing and installing. Refer to LEFT/RIGHT REAR ENTRY LAMP -W33- / -W34-, REMOVING AND INSTALLING .
Left Rear Door Warning Lamp -W37-
- 12 V, 3 W
- Removing and installing. Refer to LEFT/RIGHT REAR DOOR WARNING LAMP -W37- / -W38-, REMOVING AND INSTALLING .
