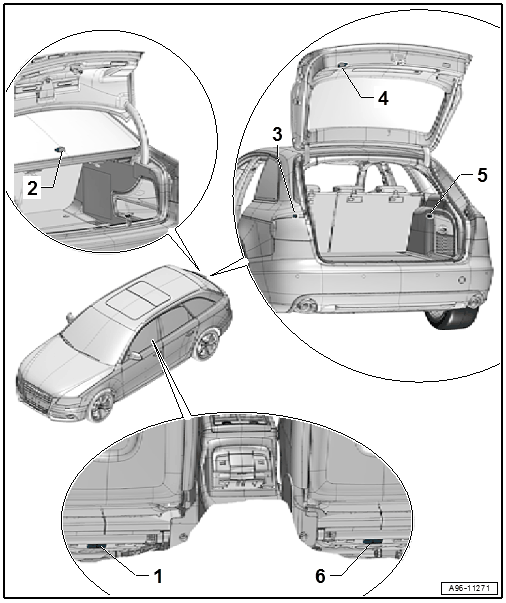

Overview - Luggage Compartment Lamps
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Left Rear Footwell Lamp -W45-
- Removing and installing. Refer to LEFT/RIGHT REAR FOOTWELL LAMP -W45- / -W46-, REMOVING AND INSTALLING .
- Luggage Compartment Lamp -W3-
- Sedan
- 12 V, 5 W
- Removing and installing. Refer to Luggage Compartment Lamp -W3-, REMOVING AND INSTALLING, SEDAN .
- Left Luggage Compartment Lamp -W18-
- Avant
- 12 V, 5 W
- Removing and installing. Refer to Left Luggage Compartment Lamp -W18- /Luggage Compartment Lamp -W3- /Ambient Lamp 1 in Rear Lid -W61-, REMOVING AND INSTALLING, AVANT .
- Ambient Lamp 1 in Rear Lid -W61-
- Avant
- 12 V, 5 W
- Removing and installing. Refer to Left Luggage Compartment Lamp -W18- /Luggage Compartment Lamp -W3- /Ambient Lamp 1 in Rear Lid -W61-, REMOVING AND INSTALLING, AVANT .
- Luggage Compartment Lamp -W3-
- Avant
- 12 V, 5 W
- Removing and installing. Refer to Left Luggage Compartment Lamp -W18- /Luggage Compartment Lamp -W3- /Ambient Lamp 1 in Rear Lid -W61-, REMOVING AND INSTALLING, AVANT .
- Right Rear Footwell Lamp -W46-
- Removing and installing. Refer to LEFT/RIGHT REAR FOOTWELL LAMP -W45- / -W46-, REMOVING AND INSTALLING .
