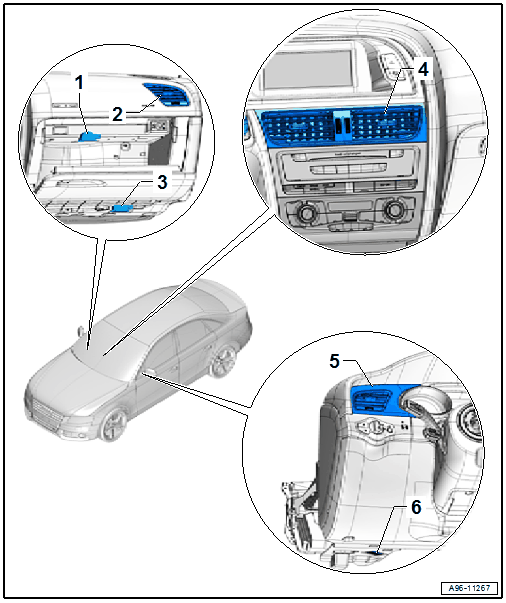

Overview - Instrument Panel Lamps
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
Observe notes on contact corrosion. Refer to CONTACT CORROSION .
- Glove Compartment Lamp -W6-
- 12 V, 5 W
- Removing and installing. Refer to Glove Compartment Lamp -W6-, REMOVING AND INSTALLING .
- Right Instrument Panel Vent Illumination Bulb -L69-
- Removing and installing. Refer to LEFT/RIGHT INSTRUMENT PANEL VENT ILLUMINATION BULB -L67- / -L69-, REMOVING AND INSTALLING .
- Right Front Footwell Illumination Bulb -L152-
- Removing and installing. Refer to LEFT/RIGHT FRONT FOOTWELL ILLUMINATION BULB -L151- / -L152-, REMOVING AND INSTALLING .
- Center Instrument Panel Vent Illumination Bulb -L68-
- Inside the center instrument panel vent. Cannot be replaced separately if faulty.
- Center Instrument Panel Vent, removing and installing. Refer to INSTRUMENT PANEL VENT, REMOVING AND INSTALLING .
- Left Instrument Panel Vent Illumination Bulb -L67-
- Removing and installing. Refer to LEFT/RIGHT INSTRUMENT PANEL VENT ILLUMINATION BULB -L67- / -L69-, REMOVING AND INSTALLING .
- Left Front Footwell Illumination Bulb -L151-
- Removing and installing. Refer to LEFT/RIGHT FRONT FOOTWELL ILLUMINATION BULB -L151- / -L152-, REMOVING AND INSTALLING .
