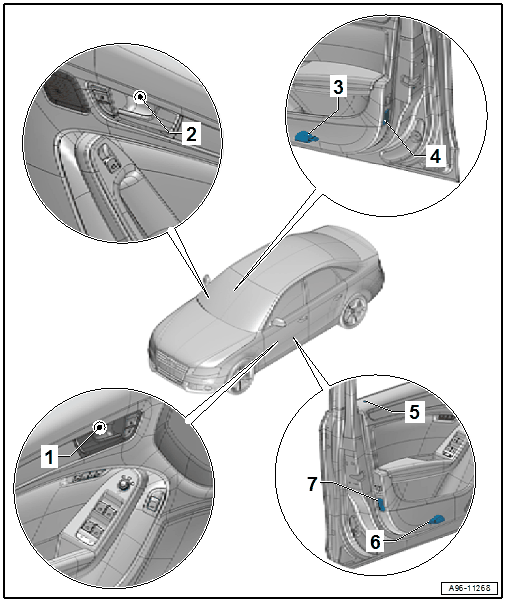

Overview - Front Door Lamps
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Driver Door Opener Illumination Bulb -L108-
- Removing and installing. Refer to Driver/Front Passenger Door Opener Illumination Bulb -L108- / -L109-, REMOVING AND INSTALLING .
- Front Passenger Door Opener Illumination Bulb -L109-
- Removing and installing. Refer to Driver/Front Passenger Door Opener Illumination Bulb -L108- / -L109-, REMOVING AND INSTALLING .
- Right Front Entry Lamp -W32-
- 12 V, 3 W
- Removing and installing. Refer to LEFT/RIGHT FRONT ENTRY LAMP -W31- / -W32-, REMOVING AND INSTALLING .
- Front Passenger Door Warning Lamp -W36-
- 12 V, 3 W
- Removing and installing. Refer to DRIVER/FRONT PASSENGER DOOR WARNING LAMP -W30- / -W36-, REMOVING AND INSTALLING .
- Central Locking -SAFE- Indicator Lamp -K133-
- Removing and installing. Refer to Central Locking -SAFE- Indicator Lamp -K133-, REMOVING AND INSTALLING .
- Left Front Entry Lamp -W31-
- 12 V, 3 W
- Removing and installing. Refer to LEFT/RIGHT FRONT ENTRY LAMP -W31- / -W32-, REMOVING AND INSTALLING .
- Driver Door Warning Lamp -W30-
- 12 V, 3 W
- Removing and installing. Refer to DRIVER/FRONT PASSENGER DOOR WARNING LAMP -W30- / -W36-, REMOVING AND INSTALLING .
