Left Luggage Compartment Lamp -W18- /Luggage Compartment Lamp -W3- /Ambient Lamp 1 in Rear Lid -W61-, REMOVING AND INSTALLING, AVANT: Removing

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

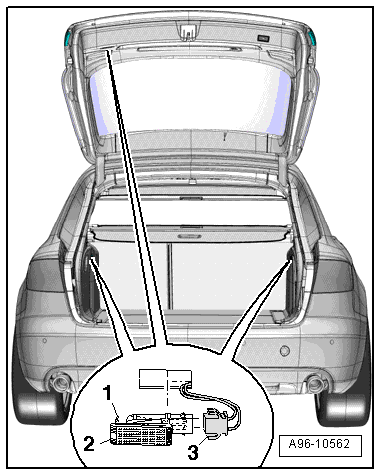

Fig 1: Overview Of Luggage Compartment Lamps (Avant)

Courtesy of AUDI OF AMERICA, LLC

-- Press in the retaining tab -1- with a flat-head screwdriver and pry the luggage compartment lamp -2- out.

-- Disconnect the connector -3-.

Lamp in the rear lid:

Fig 2: Prying Off Cover On Door Safety Lamp

Courtesy of AUDI OF AMERICA, LLC

-- Carefully pry out the cover over the lamp -arrow-.

Continuation for all:

Fig 3: Replacing Door Safety Light/Entry Light Bulb

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bulb -1- on the rear side of the luggage compartment light from the socket -2-.
