Left/Right Front Entry Lamp -W31- / -W32-, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

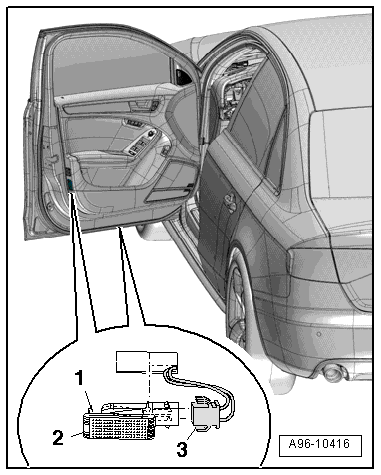

Fig 1: Identifying Front Entry and Door Warning Lamp Bulb

GWWA96-10416

Courtesy of AUDI OF AMERICA, LLC

-- Press the retaining tab -1- in using a flat-head screwdriver and pry the door warning lamp or entry lamp -2- out.

-- Disconnect the connector -3-.

Door warning lamps:

Fig 2: Prying Off Cover On Door Safety Lamp

GWWA96-0481

Courtesy of AUDI OF AMERICA, LLC

-- Carefully pry out the cover over the lamp -arrow-.

Entry lamps:

Fig 3: Releasing Clips And Pulling Cover Off Above Light Bulb

GWWA96-0666

Courtesy of AUDI OF AMERICA, LLC

-- Release the retaining clips -arrows- and remove the cover -1- over the bulb.

All vehicles:

Fig 4: Replacing Door Safety Light/Entry Light Bulb

GWWA96-0599

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bulb -1- on the rear side of the door warning lamp or entry lamp from the socket -2-.
