Central Locking -SAFE- Indicator Lamp -K133-, REMOVING AND INSTALLING: Removing
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and remove the key.
-- Remove the front door trim panel. Refer to INSTRUMENT PANEL VENT, REMOVING AND INSTALLING .

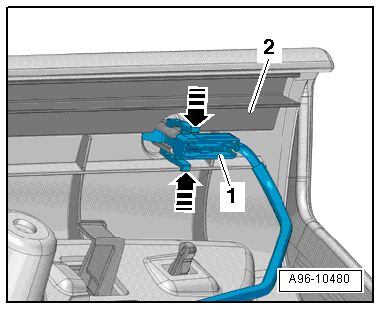

-- Release the retaining clips -arrows-.
-- Remove the central locking LED -1- down out of the door trim -2-.
