Power Window Control Head In Driver Door -E512-, REMOVING AND INSTALLING: Removing

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Insert A Screwdriver Into Hole On Bottom Of The Trim

Courtesy of AUDI OF AMERICA, LLC

-- Turn off the ignition and remove the key.

-- Insert a screwdriver in the hole at the bottom of the trim -1-.

-- Beginning at the rear, carefully pry the trim out of the door trim -arrow-.

-- Disconnect the connector -3-.

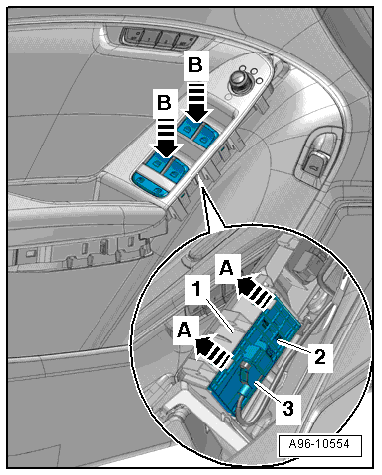

Fig 2: Carefully Pull Retaining Tabs To Side -A Arrows-

Courtesy of AUDI OF AMERICA, LLC

-- Carefully pull the retaining tabs to the side -A arrows-.

-- Remove the power window switch -2- from the switch mount -1- -B arrows-.
