Steering Gear, Adjusting

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Torque Wrench 1331 5-50Nm VAG1331

NOTE:

Two technicians are required for adjusting. The adjustment is performed with the engine off.

-- Remove the noise insulation. Refer to OVERVIEW - NOISE INSULATION .

-- Bring the steering gear into the center position. Refer to HYDRAULIC POWER STEERING GEAR, STEERING CENTERING .

-- Turning the steering wheel back and forth (approximately 30° off center axis) will produce a rattling noise if steering play is too large.

-- The second mechanic must carefully screw the adjustment screw -arrow- until the knocking noise can no longer be heard inside the vehicle.

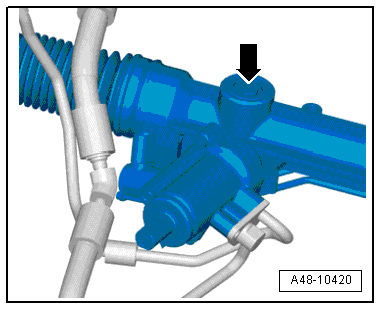

Fig 1: Locating Adjustment Screw

Courtesy of AUDI OF AMERICA, LLC

-- Perform a road test.

-- Make sure that when maneuvering or negotiating corners the steering self-centers without sticking, adjust if necessary.
