Steering Intermediate Shaft, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Straighten the wheels.

-- Position the steering wheel as far down as possible using the full range of the steering column adjuster.

-- Turn the steering wheel to the center position (wheels are straight).

-- Turn the steering wheel so that the wheels are in the straight-ahead position and then tape it secure -arrow- so that it cannot turn.

Fig 1: Taping Steering Wheel

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Be sure to use tape that will not leave behind any residue when it is removed.

Be careful not to turn the steering wheel during the repair because the Airbag Spiral Spring/Return Spring with Slip Ring -F138- can become damaged.

-- Move the driver seat rearward to the stop.

-- Remove the bolt -2- and remove the steering intermediate shaft -3- from the steering column -1-.

Fig 2: Identifying Steering Intermediate Shaft

Courtesy of AUDI OF AMERICA, LLC

-- Place the vehicle on a hoist.

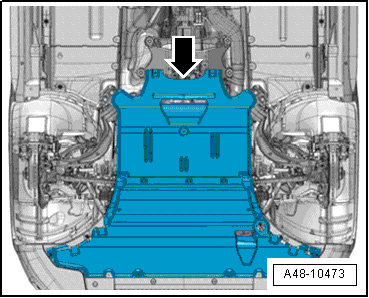

-- Remove the rear noise insulation -arrow-.

Fig 3: Identifying Rear Noise Insulation

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt -arrow-.

Fig 4: Locating Steering Intermediate Shaft Bolt

Courtesy of AUDI OF AMERICA, LLC

-- Remove the steering intermediate shaft -1- from the steering gear -2-.

WARNING:

Danger of getting burned by the exhaust system depending on the engine installed.

-- Remove the protective boot on the straps -arrows- from the body.

Fig 5: Locating Protective Boot Straps

Courtesy of AUDI OF AMERICA, LLC

-- Remove the steering intermediate shaft downward.
