Rear Final Drive Gear Oil, Checking

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2015 Audi S4, 2015 Audi A4 Quattro, and 2014 Audi S4. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Catch tray

-- Remove the sealing plug -arrow- for checking transmission fluid.

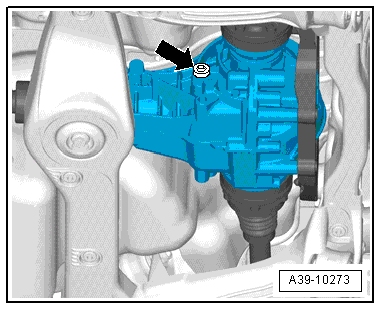

Fig 1: Locating Rear Final Drive Plug For Checking Fluid Level (0BD)

Courtesy of AUDI OF AMERICA, LLC

The fluid level is correct when the rear final drive is filled up the lower edge of the fluid fill hole.

Transmission fluid specification, refer to ENGINE CODE, TRANSMISSION ALLOCATION, RATIOS AND CAPACITIES .

-- Install the screw plug -arrow- and tighten.

Tightening Specifications: 45 Nm
