Sealant application for guide frame, position of alignment bushings
WARNING: This page is about a different car, the 2009 Audi A4, 2008 Audi A4, 2007 Audi A4, 2006 Audi A4, and 2005 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.
- Clean sealing surfaces, they must be free of oil and grease on top and bottom.

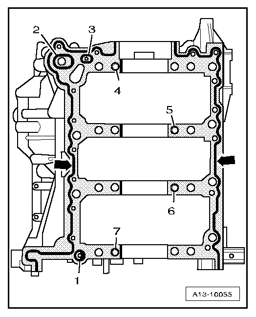

- Apply sealant beads - arrows - on clean sealing surfaces of guide frame as shown in illustration.
- The groove of sealing surface must be completely filled with sealant.
- Sealant beads must stand 1.5 to 2.0 mm above sealing surface.
- Install seals - 1 through 3 -.
- Check whether alignment bushings - 4 through 7 - are inserted at locations in guide frame as shown in the illustration.
