Allocation of crankshaft bearing shells for guide frame
WARNING: This page is about a different car, the 2009 Audi A4, 2008 Audi A4, 2007 Audi A4, 2006 Audi A4, and 2005 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.
- Bearing shells with correct thickness are allocated to guide frame in the factory. Colored dots on sides of bearing shells serve for identifying bearing shell thickness.

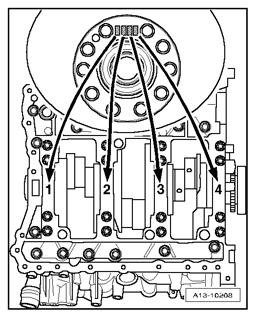

- Allocation of bearing shells to guide frame is marked on flywheel flange of crankshaft by a row of letters. The first letter of the row of letters represents bearing "1" , the second letter is for bearing "2" , etc.
Through engine no. BKH 033 000:
On engines through no. BKH 033 000 another allocation of letters on crankshaft to bearing shell color applies to bearing 1 (front).
| Bearing no. | Letter on crankshaft | Color of bearing | |
|---|---|---|---|
| 1 | G | = | red |
| B | = | yellow | |
| S | = | Blue | |
| 2 4 | G | = | yellow |
| B | = | Blue | |
| S | = | black | |
From engine no. BKH 033 001:
| Letter on crankshaft | Color of bearing | |
|---|---|---|
| R | = | red |
| G | = | yellow |
| B | = | Blue |
| S | = | black |
