Detaching timing chains from camshaft, removing and installing chain tensioner: Notes

WARNING: This page is about a different car, the 2009 Audi A4, 2008 Audi A4, 2007 Audi A4, 2006 Audi A4, and 2005 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

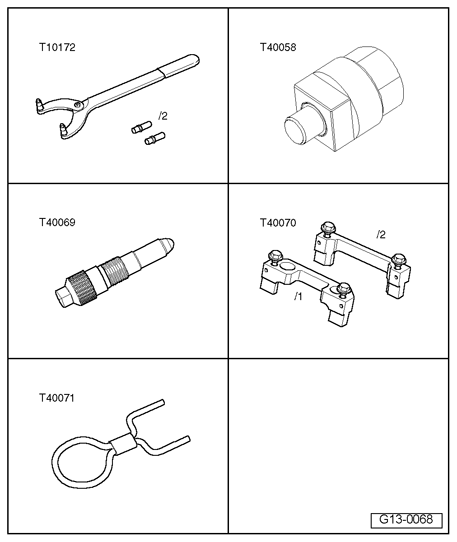

Fig 1: Identifying Special Tools - Detaching Timing Chains From Camshaft, Removing And Installing Chain Tensioner

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Special tools, testers and auxiliary items required

Counter-holder T10172 with pin T10172/2
Adapter T40058
Locking pin T40069
Camshaft locator T40070 (qty. 2)

Securing pin T40071 (qty. 2)

Special tools, testers and auxiliary items required

Fig 2: Socket And Key T10035

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Multi-point socket T10035
