Balance shaft, component overview

WARNING: This page is about a different car, the 2009 Audi A4, 2008 Audi A4, 2007 Audi A4, 2006 Audi A4, and 2005 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

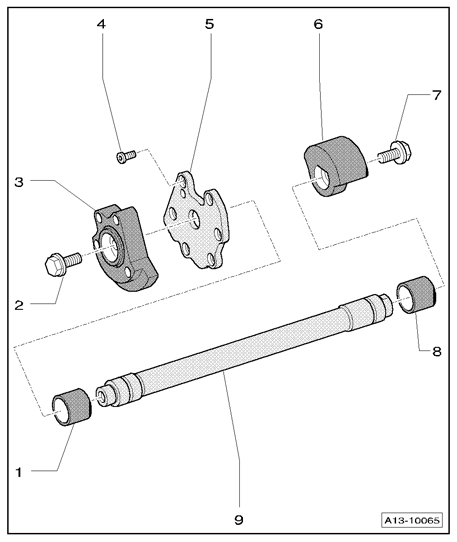

Fig 1: Balance Shaft, Component Overview

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Friction bearing

2 - 60 Nm

To loosen and fasten, use a 8 mm dia. drill bit as counter-holder

3 - Balance weight (timing chain side)

Can only be positioned one way on balance shaft

4 - 9 Nm

5 - Bearing end bracket

6 - Balance weight (belt pulley side)

Can only be positioned one way on balance shaft

7 - 60 Nm

To loosen and fasten, use a 8 mm dia. drill bit as counter-holder

8 - Friction bearing

9 - Differential shaft

Removing and installing → Balance shaft, removing and installing
