Ribbed belt drive, component overview

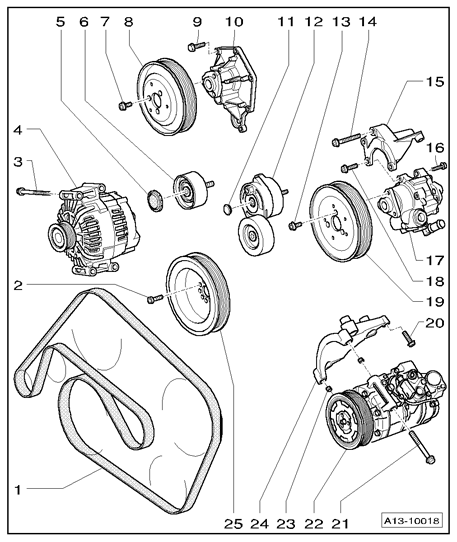

Fig 1: Ribbed Belt Drive, Component Overview

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Ribbed belt

• Check for wear
• Before removing, mark direction of rotation using chalk or felt-tip marker. Reversing direction of rotation of a run-in belt can destroy belt
• Removing and installing → Ribbed belt, removing and installing
• When installing, make sure it is seated correctly on pulleys

2 - 30 Nm

3 - 22 Nm

4 - Generator

• Removing and installing → 27 BATTERY, STARTER, GENERATOR, CRUISE CONTROL

5 - Cap for idler pulley

6 - Idler roller for ribbed belt

• Tighten to 40 Nm

7 - 20 Nm

8 - Ribbed belt pulley for coolant pump

9 - 9 Nm

10 - Coolant pump

• Removing and installing → Coolant pump, removing and installing

11 - Cap for tensioning element

12 - Tensioning element for ribbed belt

• Tighten to 40 Nm

13 - 20 Nm

14 - 20 Nm

15 - Bracket for power steering pump

16 - 20 Nm

17 - Power steering pump

• Removing and installing → 48 - STEERING

18 - 20 Nm

19 - Belt pulley for power steering pump

• Identification: "Vorne/Front"

20 - 20 Nm

21 - 25 Nm

22 - Air conditioner compressor

• Removing and installing → 87 AIR CONDITIONING

23 - Alignment bushing

• 2 pieces

24 - Bracket for air conditioning compressor

25 - Vibration damper

• With belt pulley for ribbed belt
• Removing and installing → Vibration damper, removing and installing
