Outer Tail Lamps, Removing And Installing, Led (AVANT Through My 2012): Removing

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

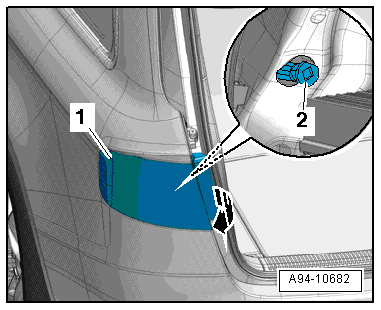

Fig 1: Removing/Installing Outer Tail Lamps, LED (Avant Through MY 2012)

Courtesy of AUDI OF AMERICA, LLC

-- Turn off the ignition and remove the key.

-- Turn the headlamp switch to "0".

-- Open the luggage compartment side trim cover.

-- Remove the threaded pins -2-.

-- Pivot the tail lamp -1- outward -arrow- and disengage the retaining pin from the body.

-- Disconnect the connector.
