Inner Tail Lamps, Removing And Installing, Led (AVANT Through My 2012): Installing

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Install in reverse order of removal. Note the following:

Tightening specification: 3.5 Nm

NOTE:

Make sure the seal between the body and tail lamp housing seals correctly.

-- Position the inner tail lamp on the outer edge of the rear lid.

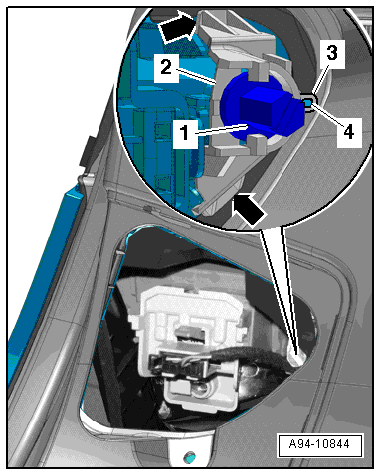

Fig 1: Positioning Inner Tail Lamp On Outer Edge Of Rear Lid

Courtesy of AUDI OF AMERICA, LLC

-- Slide the clamping bracket -2- onto the inner tail lamp threaded pins.

The guide pins -4- on the tail lamp must engage in the mount -3- on the clamping bracket.

-- Tighten the nut -1-.

NOTE:

When tightening the nuts, the clamping bracket wedges itself onto the rear lid -arrows-.
