Inner Tail Lamps, Removing And Installing, Led (AVANT From My 2013): Removing

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Removing Trim Cover (Avant)

Courtesy of AUDI OF AMERICA, LLC

-- Turn off the ignition and remove the key.

-- Turn the headlamp switch to "0".

-- Remove the cover -1- in direction of -arrow-.

-- Disconnect the connector -1-.

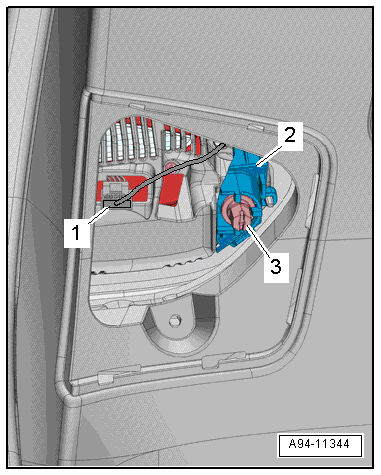

Fig 2: Removing Inner Tail Lamp (Avant From MY 2013)

Courtesy of AUDI OF AMERICA, LLC

-- Remove the nut -3- and remove the clamping bracket -2-.

-- Remove the inner tail lamp toward the outside.
