Inner Tail Lamps, Removing And Installing, Led (AVANT From My 2013): Installing

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

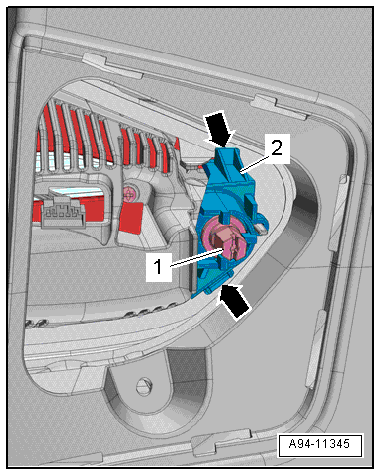

Fig 1: Installing Inner Tail Lamp (Avant From MY 2013)

Courtesy of AUDI OF AMERICA, LLC

Install in reverse order of removal. Note the following:

Tightening specification: 4 Nm

NOTE:

Make sure the seal between the body and tail lamp housing seals correctly.

-- Push the clamping bracket -2- onto the threaded pin on the inner tail lamp and tighten the nut -1- 3 turns.

-- Position the inner tail lamp on the outer edge of the rear lid so that the clamping bracket audibly engages.

-- Press the tail lamp against the rear lid and tighten the nut at the same time.

NOTE:

When tightening the nuts, the clamping bracket wedges itself onto the rear lid -arrows-.
