Overview - Body Tail Lamps, Led (AVANT From My 2013)
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
Observe notes on contact corrosion. Refer to CONTACT CORROSION .

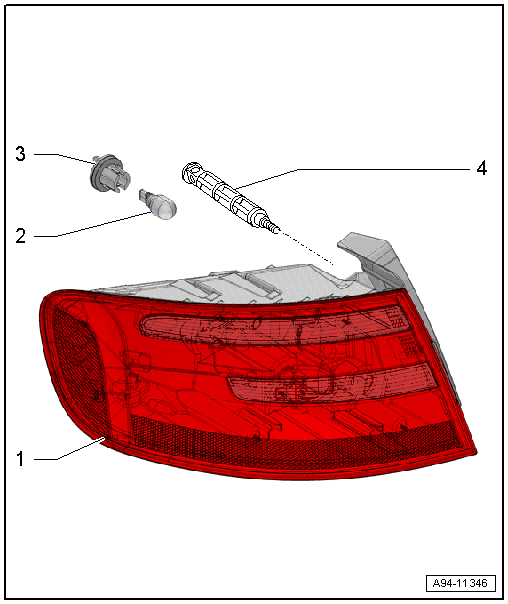

- Outer Tail Lamps
- Removing and installing. Refer to OUTER TAIL LAMPS, REMOVING AND INSTALLING, LED, AVANT FROM MY 2013 .
- Back-Up Lamp Bulb
- Left Back-Up Lamp Bulb -M16-
- Right Back-Up Lamp Bulb -M17-
- 12 V, 18 W
- W16W
- Bulb, replacing. Refer to LEFT/RIGHT BACK-UP LAMP BULB -M16- / -M17-, REMOVING AND INSTALLING, LED, AVANT FROM MY 2013 .
- Lamp Socket
- Removing and installing. Refer to BODY BULB SOCKET, REMOVING AND INSTALLING, LED, AVANT THROUGH MY 2012 .
- Threaded Studs
- 3.5 Nm
