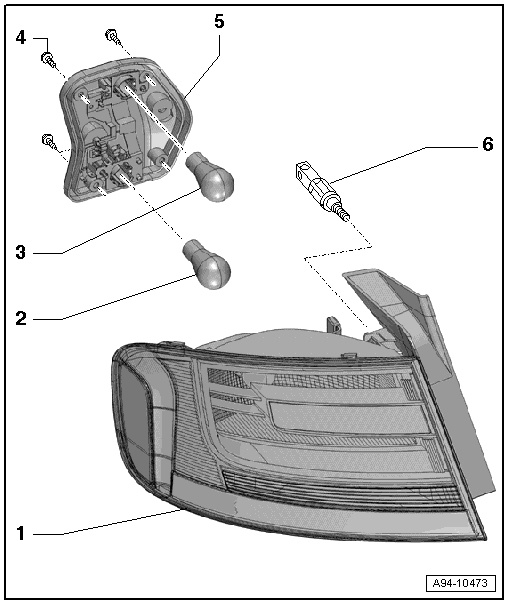

Overview - Body Tail Lamps (Sedan)
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
Observe notes on contact corrosion. Refer to CONTACT CORROSION .
- Outer Tail Lamps
- The rear side marker lamps are LEDs and are integrated in the outer tail lamps. LEDs cannot be replaced. The entire outer tail lamp must be replaced.
- Removing and installing. Refer to OUTER TAIL LAMPS, REMOVING AND INSTALLING, SEDAN .
- Turn Signal Bulb
- Left Rear Turn Signal Bulb -M6-
- Right Rear Turn Signal Bulb -M8-
- 12 V, 21 W
- Bulb, replacing. Refer to BODY BULB SOCKET, REMOVING AND INSTALLING, SEDAN .
- Bulb
- 12 V, 21 W
- Bulb, replacing. Refer to BODY BULB SOCKET, REMOVING AND INSTALLING, SEDAN .
- Left Brake Lamp/Turn Signal/Tail Lamp Bulb -M69-
- Right Brake Lamp/Turn Signal/Tail Lamp Bulb -M70-
- Screw
- 1.7 Nm
- Lamp Socket
- Removing and installing. Refer to BODY BULB SOCKET, REMOVING AND INSTALLING, SEDAN .
- Threaded Studs
- 3.5 Nm
