Left/Right Rear Fog Lamp Bulb -L46- / -L47-, Removing And Installing, Led (AVANT Through My 2012): Removing

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Removing Cover Toward Outside Of Vehicle (Avant)

Courtesy of AUDI OF AMERICA, LLC

-- Turn off the ignition and remove the key.

-- Turn the headlamp switch to "0".

-- Pull the cover -1- toward the outside of the vehicle -arrow-.

-- Disconnect the connector -1-.

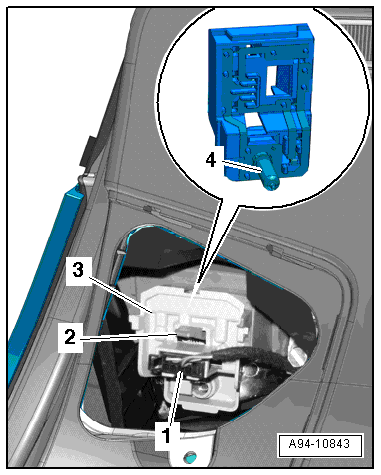

Fig 2: Removing Bulb Socket From Housing (Avant Through MY 2012)

Courtesy of AUDI OF AMERICA, LLC

-- Release the locking mechanism -2- and remove the bulb socket -3- from the housing.

-- Remove the fog lamp light bulb -4-.
