Rear Lid Bulb Socket, Removing And Installing (Sedan): Removing

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Prying Cover Using Trim Wedge 3409

Courtesy of AUDI OF AMERICA, LLC

-- Turn off the ignition and remove the key.

-- Turn the headlamp switch to "0".

-- Pry off the cover -1- using the Trim Removal Wedge 3409 -arrow-.

-- Press the locking bracket -2- in the direction of the -arrow- and remove the bulb socket -1- from the housing.

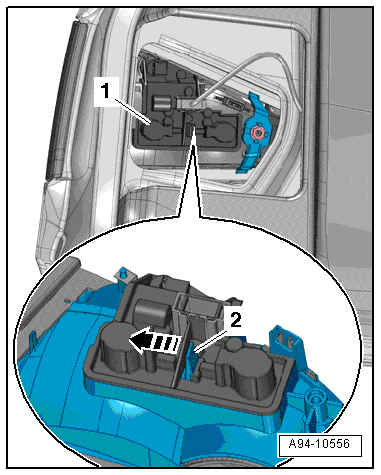

Fig 2: Removing Bulb Socket From Housing

Courtesy of AUDI OF AMERICA, LLC

-- Remove the rear parking/fog lamp bulb from the socket.

-- Remove the back-up lamp bulb from the socket.
