Rear Lid Bulb Socket, Removing And Installing (AVANT): Removing

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

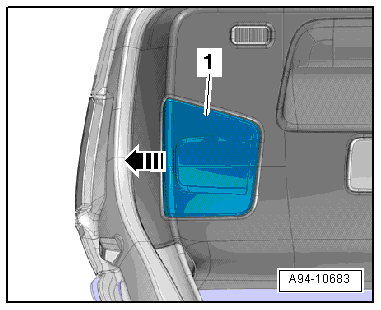

Fig 1: Removing Cover Toward Outside Of Vehicle (Avant)

Courtesy of AUDI OF AMERICA, LLC

-- Turn off the ignition and remove the key.

-- Turn the headlamp switch to "0".

-- Pull the cover -1- toward the outside of the vehicle -arrow-.

-- Push the locking bracket -1- in direction of -arrow- and remove the bulb socket -2- from the housing.

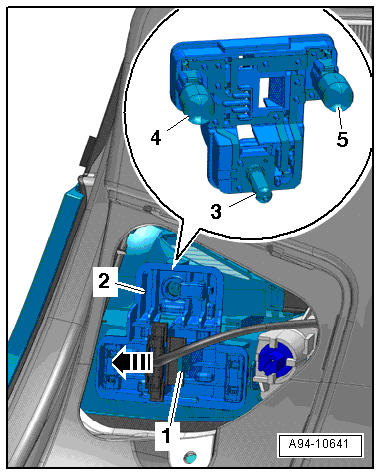

Fig 2: Removing Rear Lid Bulb Socket (Avant)

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bulbs from the bulb socket.

Remove the bulbs -4- and -5- for the tail lamp.
Remove the fog lamp bulb -3-.
