Body Bulb Socket, Removing And Installing, Led (AVANT Through My 2012): Removing

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

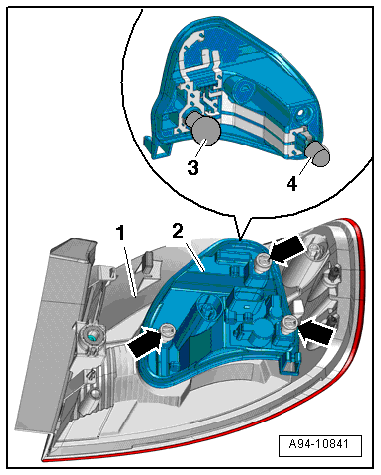

Fig 1: Removing/Installing Body Bulb Socket, Led (Avant Through MY 2012)

Courtesy of AUDI OF AMERICA, LLC

-- Remove the outer tail lamp. Refer to OUTER TAIL LAMPS, REMOVING AND INSTALLING, LED, AVANT THROUGH MY 2012 .

-- Remove the nuts -arrows-.

-- Remove the bulb socket -2- from the tail lamp -1-.

-- Remove the bulbs from the bulb socket.

Remove the turn signal bulb -3-.
Remove the back-up lamp bulb -4-.
