Body Bulb Socket, Removing And Installing (Sedan): Removing

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

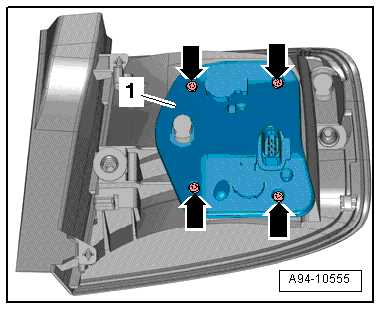

Fig 1: Identifying Outer Tail Lamp Bulb And Screws (Sedan)

Courtesy of AUDI OF AMERICA, LLC

-- Remove the outer tail lamp. Refer to OUTER TAIL LAMPS, REMOVING AND INSTALLING, SEDAN .

-- Remove the bolts -arrows-.

-- Remove the bulb socket -1- from the tail lamp.

-- Remove the bulbs from the bulb socket.
