Left/Right Back-Up Lamp Bulb -M16- / -M17-, Removing And Installing, Led (AVANT From My 2013): Removing

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

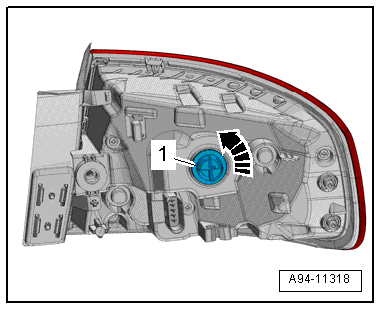

Fig 1: Removing Back-Up Lamp Bulb (Avant From MY 2013)

Courtesy of AUDI OF AMERICA, LLC

-- Remove the outer tail lamp. Refer to OUTER TAIL LAMPS, REMOVING AND INSTALLING, LED, AVANT FROM MY 2013 .

-- Turn the bulb socket -1- counterclockwise -arrow- and remove it from the tail lamp housing.

-- Remove the back-up lamp bulb from the bulb socket.
