Steering Column Switch Module, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Adjust steering wheel downward and to rear as far as possible, use entire adjustment range of steering column adjustment for this.

-- Remove the driver airbag. Refer to SIDE AIRBAGS .

-- Remove the steering wheel. Refer to STEERING WHEEL, REMOVING AND INSTALLING .

-- Remove the steering column trim panel. Refer to UPPER STEERING COLUMN TRIM PANEL, REMOVING AND INSTALLING and LOWER STEERING COLUMN TRIM PANEL, REMOVING AND INSTALLING .

-- Remove the bolt -1-.

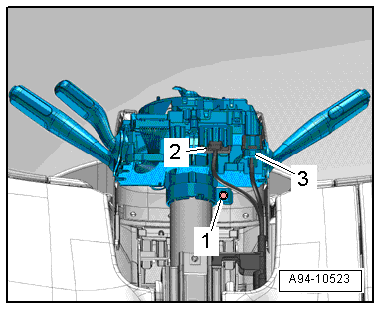

Fig 1: Identifying Bolt -1-, Connectors -2- And -3-

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -2-.

WARNING:

The technician must discharge static electricity before disconnecting the connector -3-, for example by touching the door striker pin.

-- Disconnect the connector -3-.

-- Press the catch -1- in direction of -arrow- until the connector -2- disengages.

Fig 2: Disengaging Connector Lock To Release Connector

Courtesy of AUDI OF AMERICA, LLC

-- Remove the steering column switch module carefully.
