Steering Column Electronics Control Module -J527-, REMOVING AND INSTALLING: Removing

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Steering must be in center position (wheels in straight ahead position) when removing and installing coil connector with slip ring.

-- Adjust steering wheel downward and to rear as far as possible, use entire adjustment range of steering column adjustment for this.

-- Remove the driver airbag. Refer to AIRBAG UNIT WITH IGNITER, REMOVING AND INSTALLING .

-- Remove the steering wheel. Refer to STEERING WHEEL, REMOVING AND INSTALLING .

-- Remove the steering column trim panel. Refer to UPPER STEERING COLUMN TRIM PANEL, REMOVING AND INSTALLING and LOWER STEERING COLUMN TRIM PANEL, REMOVING AND INSTALLING .

-- Remove the bolt -1-.

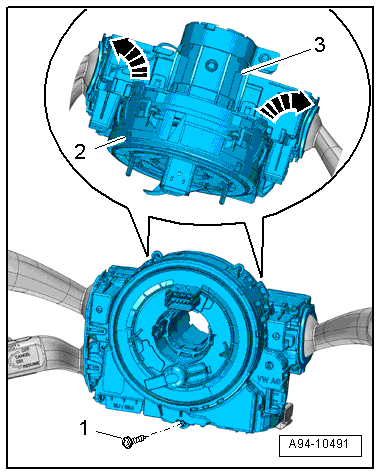

Fig 1: Identifying Airbag Spiral Spring/Return Spring With Slip Ring And Switch Module

Courtesy of AUDI OF AMERICA, LLC

-- Release the retaining hooks -arrows- carefully and remove the Airbag Spiral Spring/Return Spring with Slip Ring -F138- -item 2- from the steering column switch module -3-.

-- Release the connectors on the Airbag Spiral Spring/Return Spring with Slip Ring -F138- -item 3- by positioning the screwdriver at the retaining hooks -2- and -4- as illustrated and carefully releasing the connectors -1- and -5- in the direction of -arrow A-.

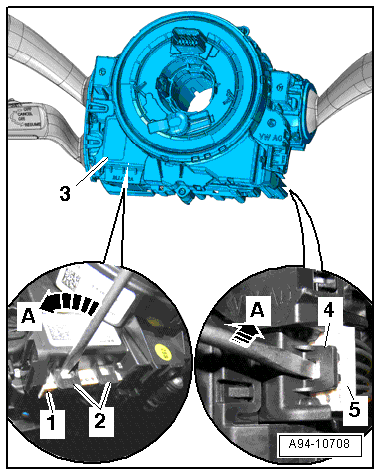

Fig 2: Disconnecting Connectors From Steering Column Electronics Control Module -3-

Courtesy of AUDI OF AMERICA, LLC

-- Remove the Airbag Spiral Spring/Return Spring with Slip Ring -F138- on the steering column switch module.
