Overview - Steering Column Switch Module: Notes
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

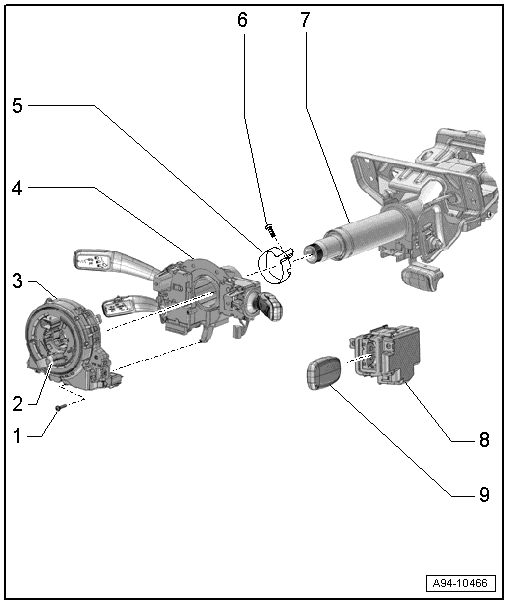

- The steering column switch module consists of a return spring with slip ring, Steering Angle Sensor -G85-, steering column switch (turn signal switch, windshield wiper switch, cruise control switch) and Steering Column Electronics Control Module -J527-.
- Fault finding is done in "Guided Fault Finding " using the Vehicle Diagnostic Tester.
- Screw
- 0.5 Nm
- Transport Protection
- Steering Column Electronics Control Module -J527-
- with Airbag Spiral Spring/Return Spring with Slip Ring -F138-, Steering Angle Sensor -G85-
- Removing and installing. Refer to Steering Column Electronics Control Module -J527-, REMOVING AND INSTALLING .CAUTION:
Risk of damaging coil connector.
- Coil connector with slip ring is not to be turned following removal.
- Pin assignment for the steering column electronics control module -J527-. Refer to STEERING COLUMN ELECTRONICS CONTROL MODULE CONNECTOR ASSIGNMENT .
- Mount
- With Turn Signal Switch -E2-, Windshield Wiper Intermittent Mode Switch -E22-
- On vehicles with cruise control with a Cruise control switch -E45-
- Removing and installing. Refer to Turn Signal Switch -E2-, REMOVING AND INSTALLING .
- Clamping Ring
- Screw
- 4 Nm
- Steering Column
- Access/Start Authorization Switch -E415-
- Removing and installing. Refer to Access/Start Authorization Switch -E415-, REMOVING AND INSTALLING .
- Ignition Key

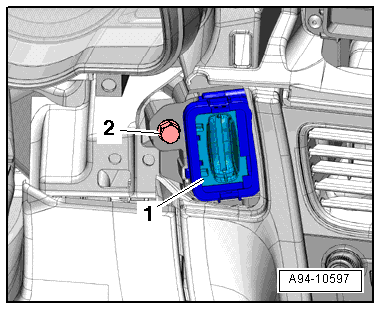

-- Tighten the screw -2- on the Access/Start Authorization Switch -E415- -item 1- to 3 Nm.
