Rear Parking Aid Sensor, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Audi RS 4: remove the rear bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

Outer sensors:

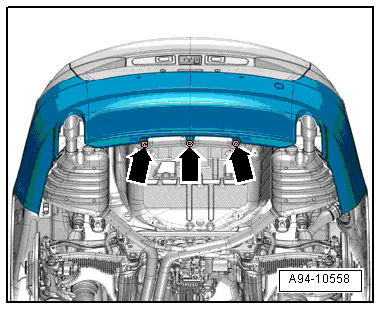

Fig 1: View Of Rear Bumper Cover Lower Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows- on the bottom side of the bumper cover.

Vehicles with a rear muffler:

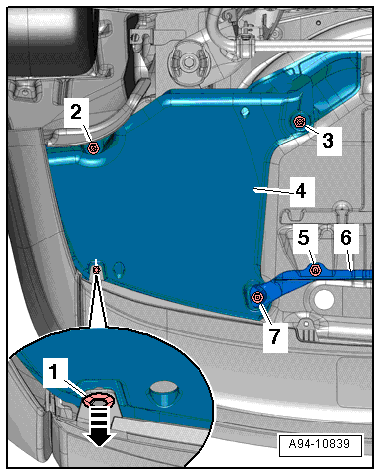

Fig 2: View Of Rear Aerodynamic Underbody Trim Panel

Courtesy of AUDI OF AMERICA, LLC

-- Remove the nuts -5- and -7- and remove the retaining element -6-.

-- Remove the pin -arrow- and expanding clip -1-.

-- Remove the nuts -2- and -3- and remove the rear aerodynamic underbody trim panel -4-.

Continuation for all sensors:

-- Reach behind the bumper cover from below.

Inner sensor - Sedan:

-- Remove the rear bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

Continuation for all sensors:

Fig 3: Removing Parking Aid Sensors

Courtesy of AUDI OF AMERICA, LLC

-- Press both retainer tabs to side -arrows- and press sensor -2- from outside towards inside.

-- Disconnect the connector -1- from the sensor.
