Overview - Parking Aid
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

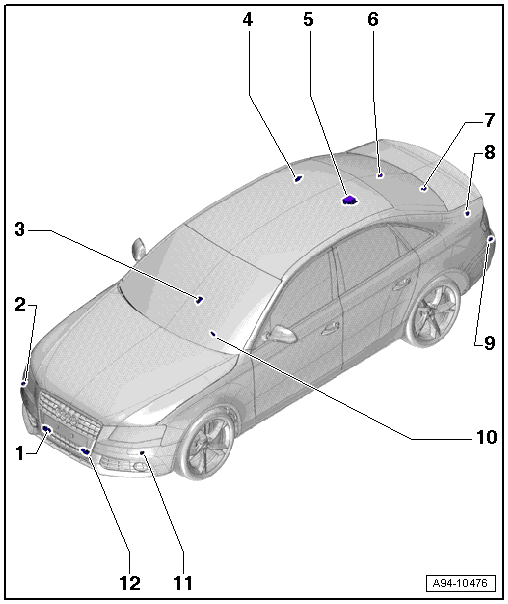

- Right Front Center Parking Aid Sensor -G253-
- Inside the radiator grille
- Removing and installing. Refer to FRONT PARKING AID SENSOR, REMOVING AND INSTALLING .
- Right Front Parking Aid Sensor -G252-
- Inside the front bumper
- Removing and installing. Refer to FRONT PARKING AID SENSOR, REMOVING AND INSTALLING .
- Parking Aid Button -E266-
- Only for 8-channel parking aid
- Component location. Refer to Fig 2
- Rear Parking Aid Warning Buzzer -H15-
- On the right rear belt relay point
- Removing and installing. Refer to Rear Parking Aid Warning Buzzer -H15-, REMOVING AND INSTALLING .
- Parking Aid Control Module -J446-
- Integrated in the Vehicle Electrical System Control Module -J519- depending on the version from MY 2013.
- Removing and installing. Refer to Parking Aid Control Module -J446-, REMOVING AND INSTALLING .
- Right Rear Parking Aid Sensor -G206-
- In rear bumper
- Removing and installing. Refer to REAR PARKING AID SENSOR, REMOVING AND INSTALLING .
- Right Rear Center Parking Aid Sensor -G205-
- In rear bumper
- Removing and installing. Refer to REAR PARKING AID SENSOR, REMOVING AND INSTALLING .
- Left Rear Center Parking Aid Sensor -G204-
- In rear bumper
- Removing and installing. Refer to REAR PARKING AID SENSOR, REMOVING AND INSTALLING .
- Left Rear Parking Aid Sensor -G203-
- In rear bumper
- Removing and installing. Refer to REAR PARKING AID SENSOR, REMOVING AND INSTALLING .
- Front Parking Aid Warning Buzzer -H22-
- Only for 8-channel parking aid
- On the instrument panel central tube behind the instrument panel cover on the driver side
- Removing and installing. Refer to Front Parking Aid Warning Buzzer -H22-, REMOVING AND INSTALLING .
- Left Front Parking Aid Sensor -G255-
- Inside the front bumper
- Removing and installing. Refer to FRONT PARKING AID SENSOR, REMOVING AND INSTALLING .
- Left Front Center Parking Aid Sensor -G254-
- Inside the radiator grille
- Removing and installing. Refer to FRONT PARKING AID SENSOR, REMOVING AND INSTALLING .
- Inside the switch unit in the center console -arrow-.
- Removing and installing: vehicles with MMI basic. Refer to CENTER CONSOLE BUTTON UNIT, REMOVING AND INSTALLING, VEHICLES WITH MMI BASIC .
- Removing and installing: vehicles with MMI Convenience. Refer to INSTRUMENT PANEL BUTTON UNIT, REMOVING AND INSTALLING, VEHICLES WITH MMI COMFORT EQUIPMENT .
NOTE:
The illustration shows the MMI Convenience.
- Nut - 3 Nm
- Parking Aid Control Module -J446- frame
- Nut - 3 Nm
- Cable ties
