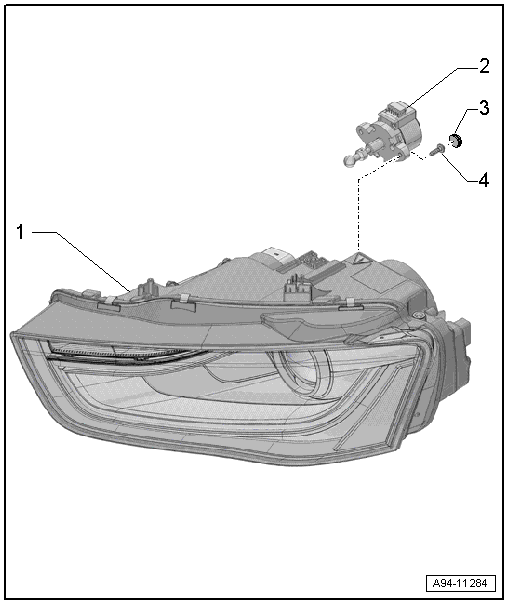

Part 2 - Repair Kit
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Headlamp Housing
- Removing and installing. Refer to HEADLAMP, REMOVING AND INSTALLING, HID HEADLAMPS FROM MY 2013 .
- Headlamp Beam Adjustment Motor
- Left Headlamp Beam Adjustment Motor -V48-
- Right Headlamp Beam Adjustment Motor -V49-
- Removing and installing. Refer to LEFT/RIGHT HEADLAMP BEAM ADJUSTMENT MOTOR -V48- / -V49-, REMOVING AND INSTALLING, HID HEADLAMPS FROM MY 2013 .
- Grommet
- The headlamp housing must be opened to replace the adjustment motor
- A grommet can be ordered to seal the assembly opening.
- Removing and installing. Refer to LEFT/RIGHT HEADLAMP BEAM ADJUSTMENT MOTOR -V48- / -V49-, REMOVING AND INSTALLING, HID HEADLAMPS FROM MY 2013 .
- Screw
- 1.4 Nm
- Quantity: 2
