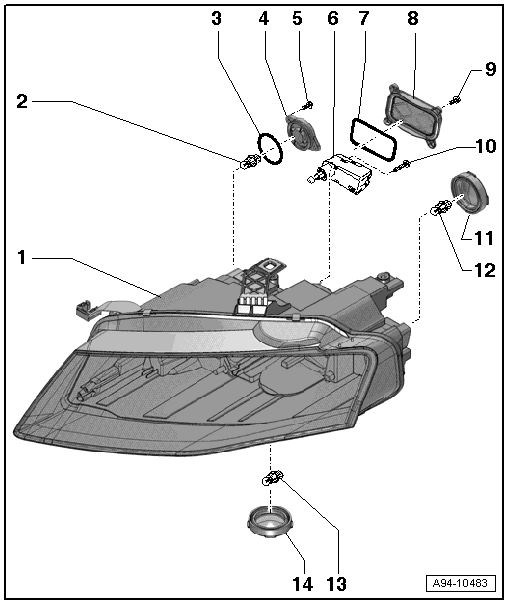

Fig 1: Overview Of Headlamp And Covers

Courtesy of AUDI OF AMERICA, LLC

Headlamp Housing
- Removing and installing. Refer to HEADLAMP, REMOVING AND INSTALLING, HALOGEN HEADLAMPS THROUGH MY 2012 .
Front Turn Signal Bulb
- Left Front Turn Signal Bulb -M5-
- Right Front Turn Signal Bulb -M7-
- 12 V, 24 W - yellow
- Bulb, replacing. LEFT/RIGHT FRONT TURN SIGNAL BULB -M5- / -M7-, REMOVING AND INSTALLING, HALOGEN HEADLAMPS THROUGH MY 2012 .
Seal
- Not available separately as a replacement part
Turn Signal Housing Cover
- The headlamp housing must be cut open to replace the bulb.
- A housing cover can be ordered to seal the assembly opening.
- Removing and installing. Refer to LEFT/RIGHT FRONT TURN SIGNAL BULB -M5- / -M7-, REMOVING AND INSTALLING, HALOGEN HEADLAMPS THROUGH MY 2012 .
Screw
- 2 Nm
- From the turn signal cover repair set
Headlamp Beam Adjustment Motor
- Left Headlamp Beam Adjustment Motor -V48- : removing and installing. Refer to Left Headlamp Beam Adjustment Motor -V48-, REMOVING AND INSTALLING, HALOGEN HEADLAMPS THROUGH MY 2012 .
- Right Headlamp Beam Adjustment Motor -V49- ; not available separately as a replacement part
Seal
- Not available separately as a replacement part
Headlamp Beam Adjustment Motor Housing Cover
- Only for the left headlamp
- The headlamp housing must be cut open to replace the adjustment motor
- A housing cover can be ordered to seal the assembly opening.
- Removing and installing. Refer to Left Headlamp Beam Adjustment Motor -V48-, REMOVING AND INSTALLING, HALOGEN HEADLAMPS THROUGH MY 2012 .
Screw
- 2 Nm
- From the repair kit for the headlamp range control adjustment motor cover
Screw
- 1.4 Nm
Position Lamp/Daytime Running Lamp Housing Cover
- The headlamp housing must be cut open to replace the bulb.
- A housing cover can be ordered to seal the assembly opening.
- Removing and installing. Refer to LEFT/RIGHT POSITION LAMP BULB -M1- / -M3-, REMOVING AND INSTALLING, HALOGEN HEADLAMPS THROUGH MY 2012 .
Daytime Running Lamp Bulb
- Left Daytime Running Lamp Bulb -L174-
- Right Daytime Running Lamp Bulb -L175-
- 12 V, 13 W
- Bulb, replacing. Refer to LEFT/RIGHT DAYTIME RUNNING LAMP BULB -L174- / -L175-, REMOVING AND INSTALLING, HALOGEN HEADLAMPS THROUGH MY 2012 .
Position Lamp Bulb/Daytime Running Lamp
- Left Position Lamp Bulb -M1-
- Right Position Lamp Bulb -M3-
- With daytime running lamp function
- Position lamp dimmed 70%
- 12 V, 13 W
- Bulb, replacing. Refer to LEFT/RIGHT POSITION LAMP BULB -M1- / -M3-, REMOVING AND INSTALLING, HALOGEN HEADLAMPS THROUGH MY 2012 .
Position Lamp/Daytime Running Lamp Housing Cover
- The headlamp housing must be cut open to replace the bulb.
- A housing cover can be ordered to seal the assembly opening.
- Removing and installing. Refer to LEFT/RIGHT DAYTIME RUNNING LAMP BULB -L174- / -L175-, REMOVING AND INSTALLING, HALOGEN HEADLAMPS THROUGH MY 2012 .
