Part 1
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

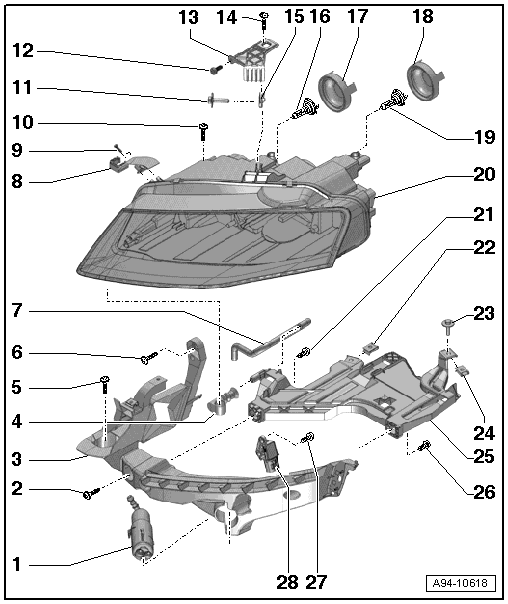

- Headlamp Washer System Spray Nozzle
- Screw
- Tightening specification: 4.5 Nm.
- Bracket
- Overview. Refer to OVERVIEW - HEADLAMP HOUSING MOUNT, VEHICLES THROUGH MY 2012 .
- Ventilation
- For the headlamp housing
- There are different versions.
- Screw
- Tightening specification: 4.5 Nm
- Screw
- Tightening specification: 4.5 Nm
- Ventilation Hose
- Headlamp Housing Bracket
- Screw
- 1.8 Nm
- Screw
- 4.5 Nm
- Screw
- 4.5 Nm
- Impact Screw
- Headlamp Housing Bracket
- Screw
- 4.5 Nm
- Spring Nut
- High Beam Headlamp Bulb
- Left High Beam Headlamp Bulb -M30-
- Right High Beam Headlamp Bulb -M32-
- 12 V, 55 W (H7)
- Bulb, replacing. Refer to LEFT/RIGHT HIGH BEAM HEADLAMP BULB -M30- / -M32-, REMOVING AND INSTALLING, HALOGEN HEADLAMPS THROUGH MY 2012 .
- Housing Cover
- For the high beam headlamps
- Housing Cover
- For the low beam headlamps
- Low Beam Headlamp Bulb
- Left Low Beam Headlamp Bulb -M29-
- Right Low Beam Headlamp Bulb -M31-
- 12 V, 55 W (H7)
- Bulb, replacing. Refer to LEFT/RIGHT LOW BEAM HEADLAMP BULB -M29- / -M31-, REMOVING AND INSTALLING, HALOGEN HEADLAMPS THROUGH MY 2012 .
- Headlamp Housing
- The front side marker lamp bulb is an LED and is integrated in the headlamp housing. The LED cannot be replaced. The entire headlamp must be replaced.
- Removing and installing. Refer to HEADLAMP, REMOVING AND INSTALLING, HALOGEN HEADLAMPS THROUGH MY 2012 .
- Screw
- Tightening specification: 4.5 Nm.
- Spring Nut
- Screw
- Tightening specification: 4.5 Nm.
- Spring Nut
- Mount
- Overview. Refer to OVERVIEW - HEADLAMP HOUSING MOUNT, VEHICLES THROUGH MY 2012 .
- Screw
- Tightening specification: 4.5 Nm.
- Screw
- 0.9 Nm .
- Front Airbag Crash Sensor
- Removing and installing. Refer to AIRBAG CRASH SENSORS .
