Overview - Headlamp, Halogen Headlamps (From My 2013)
WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
Note the information about contact corrosion. Refer to CONTACT CORROSION .
NOTE:
Headlamps must be adjusted after performing measures that could influence headlamp adjustment. Refer to HALOGEN HEADLAMP, ADJUSTING, REST-OF-WORLD VEHICLES .

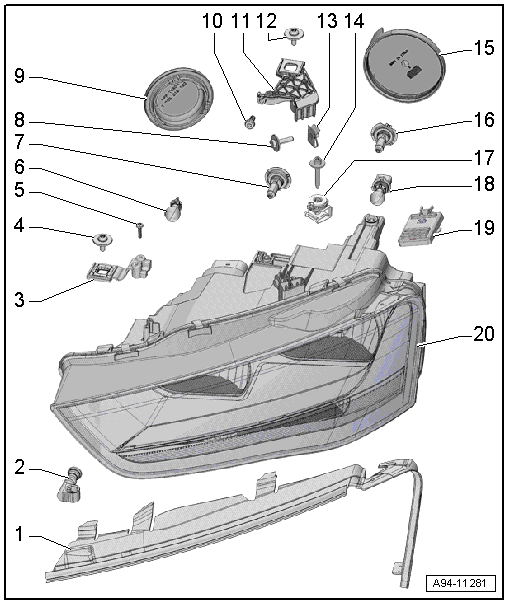

Part 1 - Headlamp housing, bulbs, control modules
- Sealing Frame
- Removing and installing. Refer to SEALING FRAME, REMOVING AND INSTALLING, HALOGEN HEADLAMPS FROM MY 2013 .
- Ventilation
- For the headlamp housing
- There are different versions.
- Headlamp Housing Inner Bracket
- Removing and installing. Refer to HEADLAMP HOUSING INNER BRACKET, REMOVING AND INSTALLING, HALOGEN HEADLAMPS FROM MY 2013 .
- Screw
- 4.5 Nm
- Screw
- 6 Nm
- Quantity: 2
- Front Turn Signal Bulb
- Left Front Turn Signal Bulb -M5-
- Right Front Turn Signal Bulb -M7-
- Removing and installing. Refer to LEFT/RIGHT FRONT TURN SIGNAL BULB -M5- / -M7-, REMOVING AND INSTALLING, HALOGEN HEADLAMPS FROM MY 2013 .
- High Beam Headlamp Bulb
- Left High Beam Headlamp Bulb -M30-
- Right High Beam Headlamp Bulb -M32-
- 12 V, 55 W (H7)
- Bulb, replacing. Refer to LEFT/RIGHT HIGH BEAM HEADLAMP BULB -M30- / -M32-, REMOVING AND INSTALLING, HALOGEN HEADLAMPS FROM MY 2013 .
- Screw
- 4.5 Nm
- Housing Cover
- Impact Screw
- For aligning headlamp housing to contour of chassis
- Must touch lock carrier
- Headlamp Housing Upper Bracket
- Removing and installing. Refer to HEADLAMP HOUSING UPPER BRACKET, REMOVING AND INSTALLING, HALOGEN HEADLAMPS FROM MY 2013 .
- Screw
- 4.5 Nm
- Spring Nut
- Screw
- 4.5 Nm
- Housing Cover
- Low Beam Headlamp Bulb
- Left Low Beam Headlamp Bulb -M29-
- Right Low Beam Headlamp Bulb -M31-
- 12 V, 55 W (H7)
- Bulb, replacing. Refer to LEFT/RIGHT LOW BEAM HEADLAMP BULB -M29- / -M31-, REMOVING AND INSTALLING, HALOGEN HEADLAMPS FROM MY 2013 .
- Adjuster
- For adjusting the headlamp housing to the bumper contour
- Position Lamp/Daytime Running Lamp Bulb
- Left Position Lamp Bulb -M1-
- Right Position Lamp Bulb -M3-
- Bulb, replacing. Refer to LEFT/RIGHT POSITION LAMP BULB -M1- / -M3-, REMOVING AND INSTALLING, HALOGEN HEADLAMPS FROM MY 2013 .
- Left Daytime Running Lamp Bulb -L174-
- Right Daytime Running Lamp Bulb -L175-
- 12 V, 26 W (PSX26W)
- Bulb, replacing. Refer to LEFT/RIGHT DAYTIME RUNNING LAMP BULB -L174- / -L175-, REMOVING AND INSTALLING, HALOGEN HEADLAMPS FROM MY 2013 .
- Side Marker Lamp Power Output Stage
- Left Side Marker Lamp Power Output Stage -J986-
- Right Side Marker Lamp Power Output Stage -J987-
- Removing and installing. Refer to LEFT/RIGHT SIDE MARKER LAMP POWER OUTPUT STAGE -J986- / -J987-, REMOVING AND INSTALLING, HALOGEN HEADLAMPS FROM MY 2013 .
- Headlamp Housing
- Removing and installing. Refer to HEADLAMP, REMOVING AND INSTALLING, HALOGEN HEADLAMPS FROM MY 2013 .

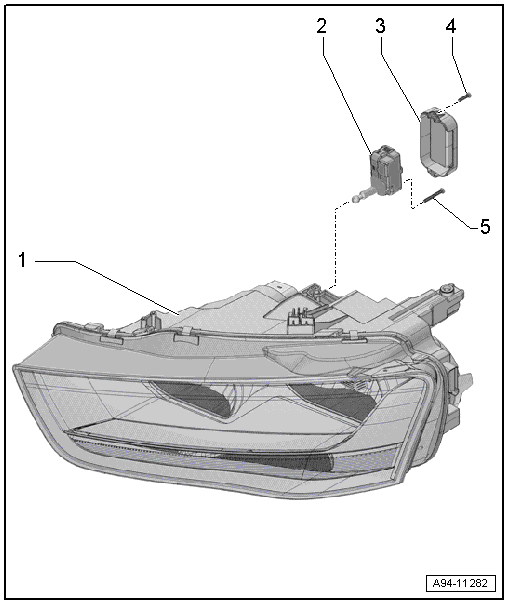

Part 2 - Repair Kit
- Headlamp Housing
- Removing and installing. Refer to HEADLAMP, REMOVING AND INSTALLING, HALOGEN HEADLAMPS FROM MY 2013 .
- Headlamp Beam Adjustment Motor
- Left Headlamp Beam Adjustment Motor -V48-
- Right Headlamp Beam Adjustment Motor -V49-
- Removing and installing. Refer to LEFT/RIGHT HEADLAMP BEAM ADJUSTMENT MOTOR -V48- / -V49-, REMOVING AND INSTALLING, HALOGEN HEADLAMPS FROM MY 2013 .
- Headlamp Beam Adjustment Motor Housing Cover
- The headlamp housing must be cut open to replace the adjustment motor
- A housing cover can be ordered to seal the assembly opening.
- Removing and installing. Refer to LEFT/RIGHT HEADLAMP BEAM ADJUSTMENT MOTOR -V48- / -V49-, REMOVING AND INSTALLING, HALOGEN HEADLAMPS FROM MY 2013 .
- Screw
- 2 Nm
- From the repair kit for the headlamp range control adjustment motor cover
- Quantity: 2
- Screw
- 1.4 Nm
- Quantity: 2
