Overview - Headlamp Housing Mount (Vehicles From My 2013)

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

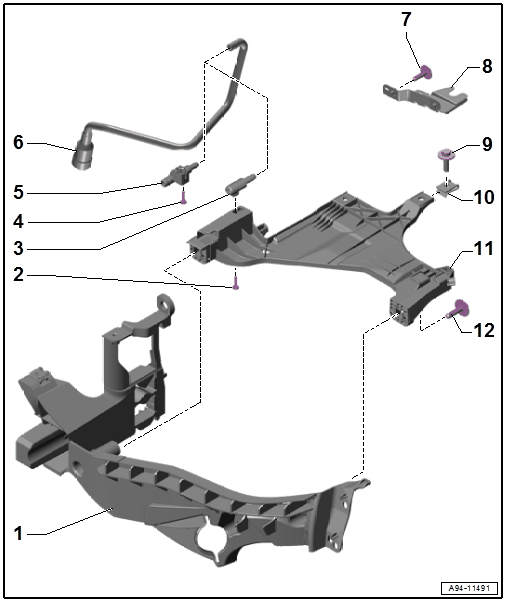

Fig 1: Overview Of Headlamp Housing Mount (Vehicles From MY 2013)

Courtesy of AUDI OF AMERICA, LLC

Bracket
- For the headlamp housing mount
- Removing and Installing. Refer to HEADLAMP HOUSING MOUNT BRACKET, REMOVING AND INSTALLING .
Screw
- 1 Nm
Mount
- For ventilation hose
- There are different versions.
- For attaching to the headlamp housing mount
Screw
- 1 Nm
Mount
- For ventilation hose
- There are different versions.
- For attaching to the headlamp housing
Ventilation Hose
- For the headlamp housing
Screw
- 4.5 Nm
- Quantity: 2
Upper Mount
- For the headlamp housing
- Removing and installing. Refer to HEADLAMP HOUSING UPPER MOUNT, REMOVING AND INSTALLING, FROM MY 2013 .
Screw
- 4.5 Nm
- Quantity: 2
Spring Nut
- Quantity: 2
Mount
- For the headlamp housing
- There are different versions.
- Removing and installing. Refer to HEADLAMP HOUSING MOUNT, REMOVING AND INSTALLING .
Screw
- 4.5 Nm
- Quantity: 2
