Left/Right Position Lamp Bulb -M1- / -M3-, Removing And Installing, Halogen Headlamps (Through My 2012): Removing

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the headlamp housing. Refer to HEADLAMP, REMOVING AND INSTALLING, HALOGEN HEADLAMPS THROUGH MY 2012 .

NOTE:

To replace the position lamp bulb, the headlamp housing must be cut at the location provided with a sharp box cutter.

A housing cover can be ordered to seal the installation opening.

WARNING:

There is a risk of injury and damage.

Wear protective gloves and eyewear.
To avoid damaged electrical wires in the headlamp housing, do not cut too deep.

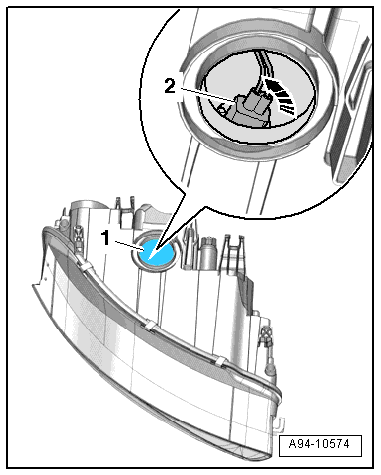

-- Cut the cover -1- out of the headlamp housing with a sharp box cutter.

Fig 1: Cut Cover -1- Out Of Headlamp (Through MY 2012)

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Remove any shavings and grit on the blind cover from the headlamp housing.

-- Turn the socket -2- counterclockwise -arrow- and remove from the housing.

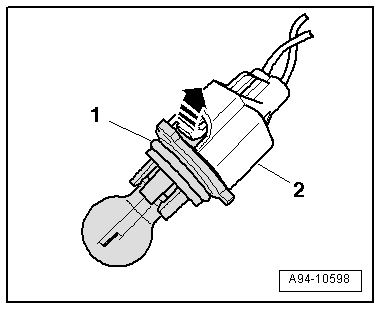

-- Release the retaining spring -arrow- and disconnect the connector -2- at the socket -1-.

Fig 2: Disconnecting Bulb Socket Electrical Connector

Courtesy of AUDI OF AMERICA, LLC
