Left/Right Position Lamp Bulb -M1- / -M3-, Removing And Installing, Halogen Headlamps (From My 2013): Removing

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Removing Housing Cover From Headlamp Housing (From MY 2013)

Courtesy of AUDI OF AMERICA, LLC

-- On the right: remove the air filter housing. Refer to the appropriate Service Information .

-- Remove the housing cover -1- from the headlamp housing -arrow-.

-- Turn the bulb socket -4- on the left headlamp clockwise and counterclockwise on the right headlamp -arrow-.

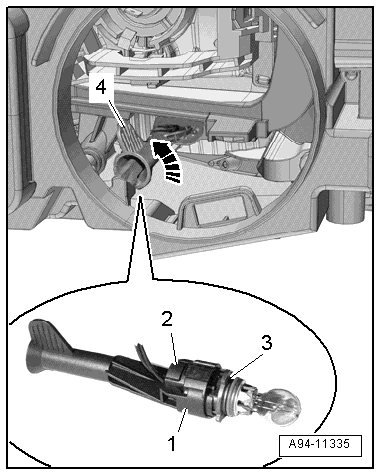

Fig 2: Disengaging Bulb Socket From Headlamp Housing (From MY 2013)

Courtesy of AUDI OF AMERICA, LLC

-- Disengage the bulb socket from the mount upward and then pull it out of the headlamp housing.

-- Release the clip -2- and remove the connector -1- from the bulb socket -3- with the bulb.
