Left/Right Position Lamp Bulb -M1- / -M3-, Removing And Installing, Halogen Headlamps (From My 2013): Installing

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

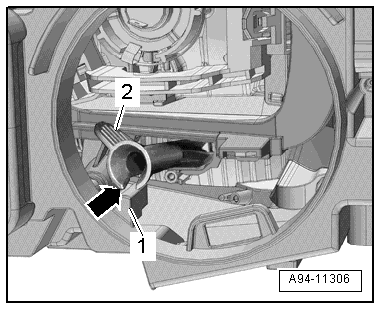

Fig 1: Installing Bulb Socket Into Headlamp Housing (From MY 2013)

Courtesy of AUDI OF AMERICA, LLC

Install in reverse order of removal. Note the following:

-- Connect the connector and insert the new bulb in the housing. Do not touch the glass bulb with bare hands.

-- Install the bulb socket into the mount on the headlamp housing and lock it in place.

The opening -arrow- in the bulb socket -2- must be opposite the mount -1-.

-- Close the housing cover -1-. At the same time, the tab -3- must align with the marking -2- on the headlamp housing.

Fig 2: Closing Housing Cover

Courtesy of AUDI OF AMERICA, LLC

-- On the right: install the air filter housing. Refer to the appropriate Service Information .
