Left/Right High Beam Headlamp Bulb -M30- / -M32-, Removing And Installing, Halogen Headlamps (Through My 2012): Removing

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

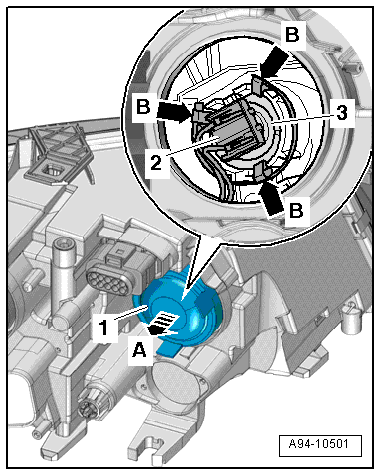

Fig 1: Removing High Beam Headlamp Bulb (Through MY 2012)

Courtesy of AUDI OF AMERICA, LLC

-- Turn off the ignition and remove the key.

-- Turn the headlamp switch to "0".

-- Remove the headlamp housing. Refer to HEADLAMP, REMOVING AND INSTALLING, HALOGEN HEADLAMPS THROUGH MY 2012 .

-- Remove the high beam housing cover -1- from the headlamp housing -arrow A-.

-- Remove the bulb -3- from the spring clips -B arrows-.

-- Disconnect the connector -2- from the bulb.
