Left/Right Hid Headlamp Control Module -J343- / -J344-, Removing And Installing, Hid Headlamps (From My 2013): Removing

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

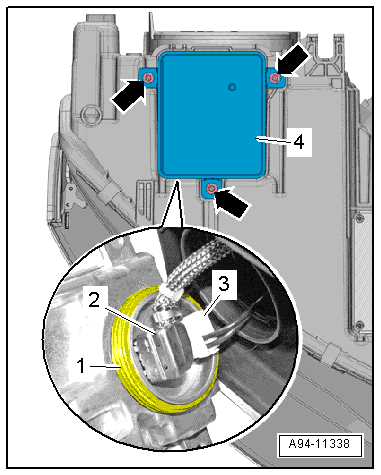

Fig 1: Removing/Installing HID Headlamp Control Module (From MY 2013)

Courtesy of AUDI OF AMERICA, LLC

-- Remove the headlamp housing. Refer to HEADLAMP, REMOVING AND INSTALLING, HID HEADLAMPS FROM MY 2013 .

-- Remove the bolts -arrows-.

-- Remove the control module -4- from the headlamp housing.

-- Disconnect the adapter cable -2- and the connector -3-.

-- Remove the control module.
