Left/Right Hid Headlamp Bulb -L13- / -L14-, Removing And Installing, Hid Headlamps (From My 2013): Removing

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

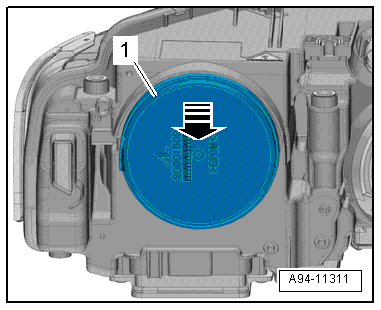

Fig 1: Headlamp Housing Cover (From MY 2013)

Courtesy of AUDI OF AMERICA, LLC

-- Turn the light switch to position "0".

-- Turn off the ignition and all electrical consumers and remove the ignition key.

-- Do not press the flasher.

-- On the right: remove the air filter housing. Refer to the appropriate Service Information .

-- Audi RS 4: remove the headlamp housing. Refer to HEADLAMP, REMOVING AND INSTALLING, HID HEADLAMPS FROM MY 2013 .

-- Remove the housing cover -1- from the headlamp housing -arrow-.

-- Rotate the HID bulb -2- in the direction of the -arrow- and remove it from the housing.

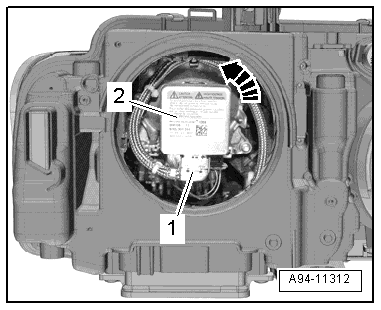

Fig 2: Removing HID Bulb From The Headlamp Housing (From MY 2013)

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -1-.
