Left/Right Front Turn Signal Bulb -M5- / -M7-, Removing And Installing, Hid Headlamps (From My 2013): Removing

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

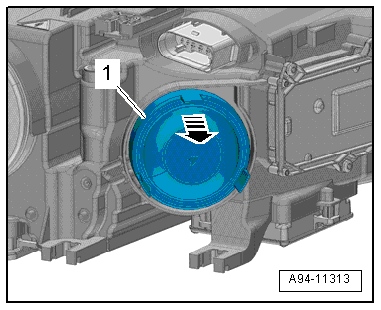

Fig 1: Identifying Front Housing Cover (HID From MY 2013)

Courtesy of AUDI OF AMERICA, LLC

WARNING:

Danger to life due to high voltage.

For work on the yellow high voltage symbol marked areas HID headlamp must be de-energized.
Turn off the ignition and all electrical consumers and remove the ignition key.
Do not press the flasher.

-- On the right: remove the air filter housing. Refer to the appropriate Service Information .

-- Audi RS 4: remove the headlamp housing. Refer to HEADLAMP, REMOVING AND INSTALLING, HID HEADLAMPS FROM MY 2013 .

-- Remove the housing cover -1- from the headlamp housing -arrow-.

-- Release the bulb socket -1- : on the left side, turn it clockwise; on the right side, turn it counterclockwise -arrow-.

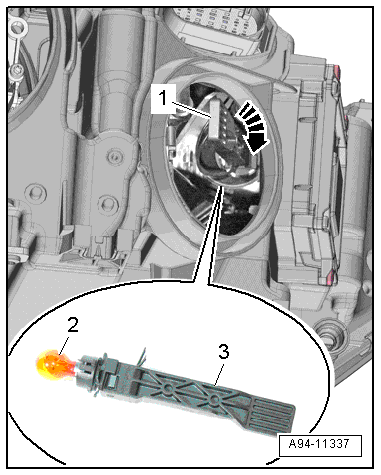

Fig 2: Removing Bulb Socket Out Of Housing (HID From MY 2013)

Courtesy of AUDI OF AMERICA, LLC

-- Pull the bulb socket out of the housing.

-- Remove the bulb -2- from the bulb socket -3-.
