Left/Right Front Turn Signal Bulb -M5- / -M7-, Removing And Installing, Halogen Headlamps (Through My 2012): Removing

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the headlamp housing. Refer to HEADLAMP, REMOVING AND INSTALLING, HALOGEN HEADLAMPS THROUGH MY 2012 .

NOTE:

To replace the front turn signal bulb, the headlamp housing must be cut at the location provided with a sharp box cutter.

A housing cover can be ordered to seal the installation opening.

WARNING:

There is a risk of injury and damage.

Wear protective gloves and eyewear.
To avoid damaged electrical wires in the headlamp housing, do not cut too deep.

-- Cut the blind cover -2- out of the headlamp housing with a sharp carpet knife.

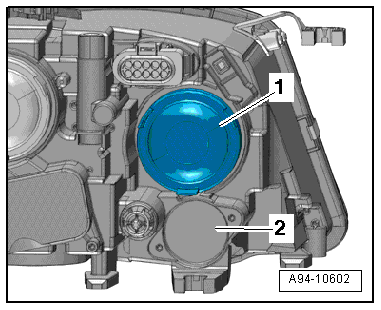

Fig 1: Removing High Beam Bulb Cover (Through MY 2012)

Courtesy of AUDI OF AMERICA, LLC

-- Remove the high beam housing cover -1- from the headlamp housing.

-- Turn the socket -1- counterclockwise -arrow- and remove it from the housing.

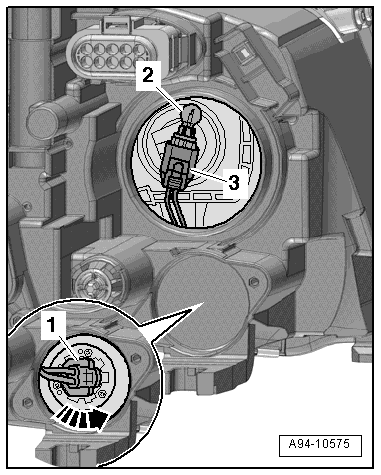

Fig 2: Turning Socket Counterclockwise (Through MY 2012)

Courtesy of AUDI OF AMERICA, LLC

-- Slide the turn signal bulb socket -2- upward toward the high beam opening.

-- Disconnect the connector -3- and remove the socket from the housing.
