Left/Right Front Turn Signal Bulb -M5- / -M7-, Removing And Installing, Halogen Headlamps (Through My 2012): Installing

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

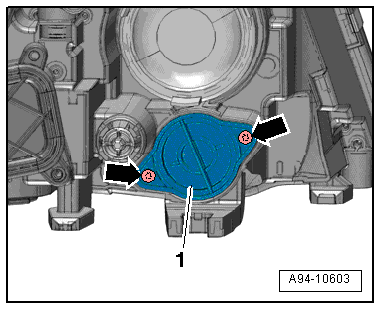

Fig 1: Closing Opening In The Headlamp With Housing Cover From Repair Kit

Courtesy of AUDI OF AMERICA, LLC

Tightening specification. Refer to OVERVIEW - HEADLAMP, HALOGEN HEADLAMPS THROUGH MY 2012 .

Install in reverse order of removal. Note the following:

-- Insert the new bulb in the headlamp socket, taking care not to touch the glass bulb with bare hands.

-- Close the opening in the headlamp with the housing cover -1- from the repair set.

-- Tighten the bolts -arrows-.

-- Install the headlamp housing. Refer to HEADLAMP, REMOVING AND INSTALLING, HALOGEN HEADLAMPS THROUGH MY 2012 .
