Left/Right Front Turn Signal Bulb -M5- / -M7-, Removing And Installing, Halogen Headlamps (From My 2013): Removing

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Removing Front Bulbs Housing Cover (From MY 2013)

Courtesy of AUDI OF AMERICA, LLC

-- On the right: remove the air filter housing. Refer to the appropriate Service Information .

-- Turn the housing cover -1- counterclockwise -arrow- and remove it from the headlamp housing.

-- Release the bulb -3- : on the left side, turn it clockwise; on the right side, turn it counterclockwise -arrow-.

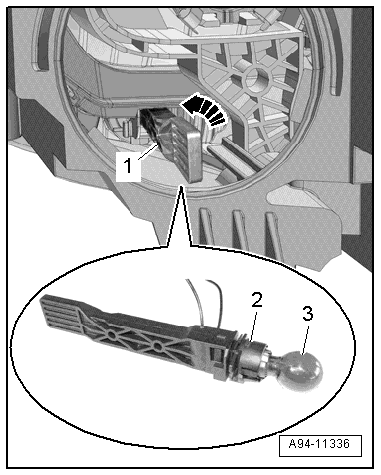

Fig 2: Removing Turn Signal Bulb From Housing (From MY 2013)

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bulb from the housing.

-- Remove the bulb -2- from the bulb socket -1-.
