Headlamp, Removing And Installing, Halogen Headlamps (Through My 2012): Removing

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Removing/Installing, Headlamps (Through MY 2012)

Courtesy of AUDI OF AMERICA, LLC

-- Turn off the ignition and remove the key.

-- Turn the headlamp switch to "0".

-- Remove the lock carrier cover. Refer to LOCK CARRIER COVER, REMOVING AND INSTALLING .

-- Disconnect the connector -2-.

-- Remove the bolts -3, 4 and 5- on the headlamp housing -1-.

-- Pull the headlamp housing -1- forward -arrow A- until the headlamp guides can be guided out of the mounts on the mounting slide.

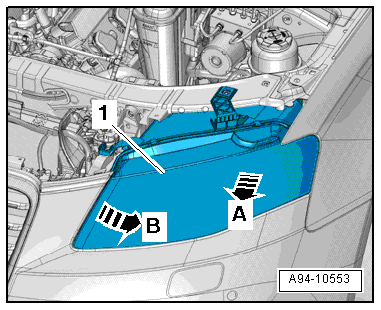

Fig 2: Removing Headlamp Housing From Mounting Slide (Through MY 2012)

Courtesy of AUDI OF AMERICA, LLC

-- Then tilt the headlamp housing toward the fender side -arrow B- and remove it from the mounting slide.
